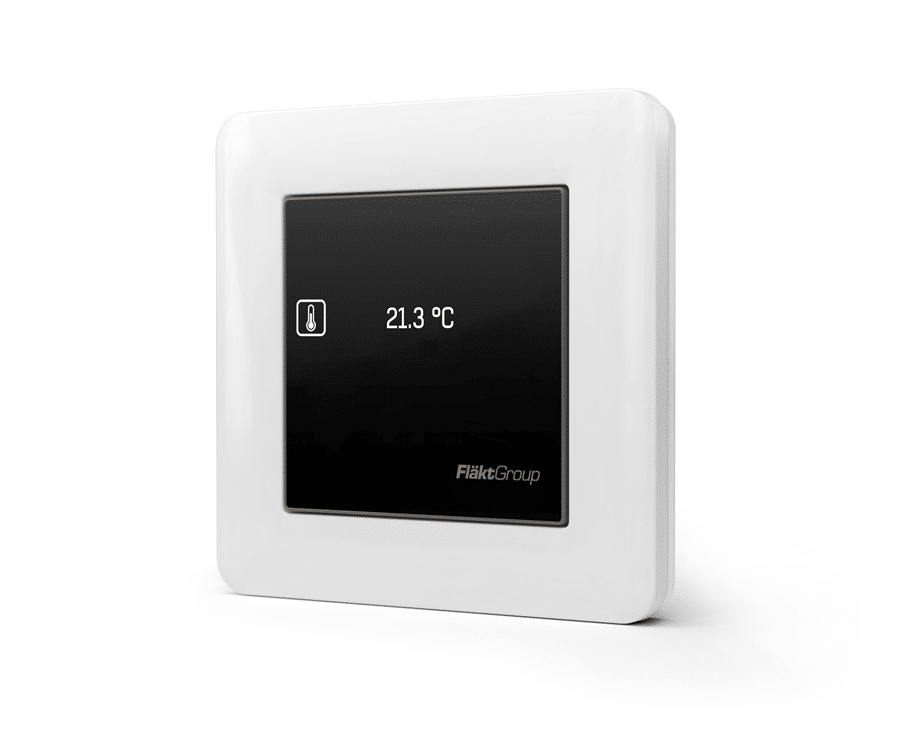

ISYteq Touch 2.1 HMI

Our versatile Touch 2.1 HMI. A compact low power (24V), HMI which can be powered from your ISYteq controller mounted in the fan coil unit.

You can now even control the patented swirl function in our HyCassette Geko fan coil units. And when you are tucked up in your hotel bed, the screen illumination dims so you can have that great night’s sleep. This control system combines innovative technology, time-saving commissioning and intuitive handling.

  • Easy touch screen navigation & 5 language display
  • Control of the patented swirl function in our HyCassette-Geko
  • Built-in temperature sensor and possibility to connect other external sensors
  • BACnet and Modbus communication controllers
  • 2.3” (5.84 cm) display with a touch sensitive colour screen
  • 12 – 48V DC supply (Can be powered from an ISYteq 3010 or 3020 PCB)
  • Supplied with a white frame, but multiple choice of frames available from Gira
  • Mounting directly on to a flush 68mm circular box
  • Screen dimmed after 30 seconds in standby mode
  • 5 language operation
  • Built-in temperature sensor
  • Graphical presentation of operation function for example: room temperature, fan speed, operation mode etc.
  • Communicates with the controller unit via an RS485 Modbus RTU protocol
  • Protection type IP20

Brug for hjælp?

Få rådgivning og support til projekter

Kontakt os

This Touch 2.1 control panel is designed as a small user interface to the FläktGroup controllers. Due to its size, it can be integrated into rooms more inconspicuously. Despite its small size, it is a complete and powerful control panel that supports almost all functions of FläktGroup controllers. The Touch 2.1 communicates with the controller via Modbus (RS485) protocol. Power can be supplied from the controller or from an external power supply. Ordering the fan coil units with the 3010 or 3020 controllers fitted enables connection to all the ISYteq interfaces regardless of 1 or multiple units. With the ISYteq Touch 2.1 operating panel all setpoints available on the controller can be changed easily and quickly.  These units can be easily interfaced with most Building Management Systems (BMS) available on the market today to give developers, building owners, designers, installers, facility managers and end users the ideal control solution for optimum performance, usability and energy efficiency with the HyFlex-Geko, HyPower-Geko, Cassette-Geko or the HyCassette-Geko with unique SWIRL outlet technology.
