Inwall FACINGS

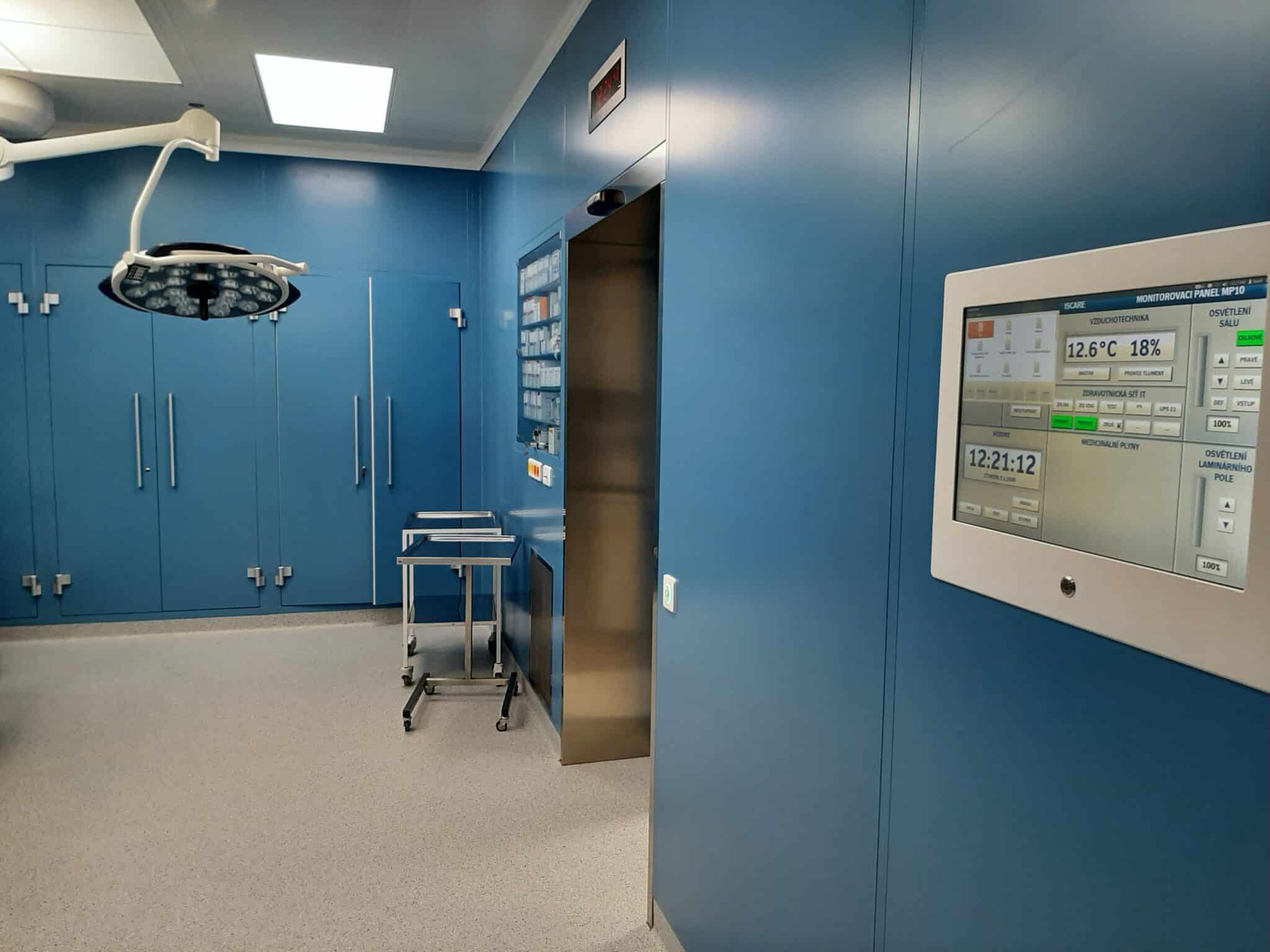

Inwall Facings are created specifically to conceal the walls of clean rooms. These facing panels can be mounted either onto the structural profiles (OT+) or directly onto the existing wall (Inwall Click). Inwall systems include the following types:

• Inwall Click for direct fixation
• Inwall Click for fixation on a supportive frame
• OT+

• Inwall Click for direct fixation

Inwall Click for direct fixation is designed to cover even wall surfaces. Inwall Click panels are constructed using bent steel plates on an exposed side and stiffened by in-pasted plasterboard with a thickness of 12.5 mm (resulting in a panel thickness of 13.5 mm). Panels are to be clicked into the W-profile (resulting in a system thickness of 38.5 mm). Use steel-zinc coated bottom profiles J65 to connect the panels with an unfinished floor(profiles to be covered by flooring).

• Inwall Click for fixation on a supportive frame

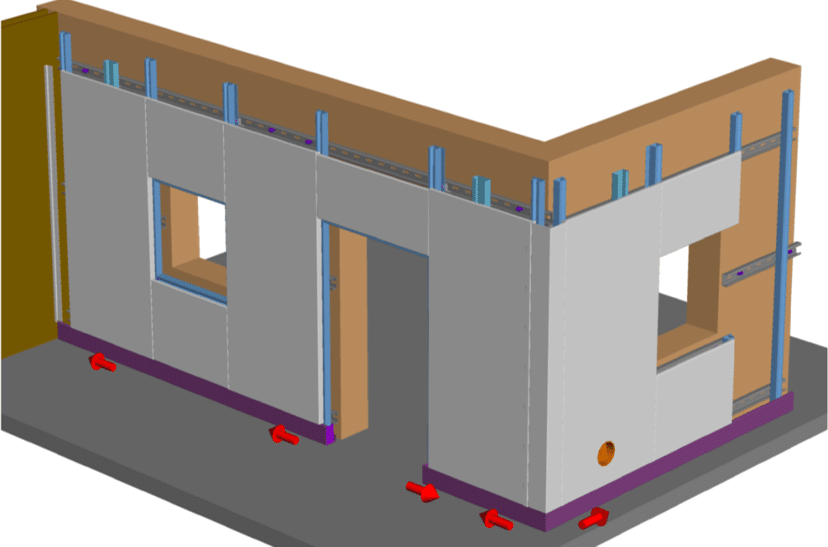

Inwall Click for fixation on a supportive frame is designed to cover uneven wall surface. Inwall Click panels are constructed using bent steel plates on an exposed side and stiffened by in-pasted plaster board with a thickness of 12.5 mm (resulting in a panel thickness of 13.5 mm). Panels are to be clicked into the W-profile. Unevenness of the existing partition wall is leveled with supporting frame made of ZL20 profiles (resulting in a system thickness of approx. 60 mm).  Use steel-zinc coated bottom profiles G65 to connect the panels with an unfinished floor (profiles to be covered by flooring).

• OT+

The OT+ system is designed to cover existing partition walls as single-sided facing or may be used as a separate wall partition by using two rows of panels at a defined distance with different filling, insulation, and cables. Inwall OT+ panels are constructed using bent steel plates on an exposed side and stiffened by in-pasted plaster board with a thickness of 18 mm (resulting in a panel thickness of 19.5 mm). Vertical joint between panels is 30 mm wide, max distance between each joint is 1.2 m. Use steel-zinc coated bottom profiles DVP100 to connect the panels with an unfinished floor (profiles to be covered by flooring). For increased sound insulation build two rows of panels and fill the hollow space between with acoustic and thermal insulation material such as mineral wool. Closed zinc-coated steel profiles with a square cross-section of 40 x 40 mm and a max length of 4.0 m provide vertical support for Inwall OT+ panels (total system thickness ~60 mm).  Steel profiles must be attached to the construction ceiling and the floor.

Inwall OT+ system contains also in-built cupboards with glass doors, pass-trough and go-trough cabinets with doors in a color matching the color of facing panels (optionally glazed). The cabinets doors are flush with the wall partition.
