eQ MASTER® AIR HANDLING UNIT

COMING SOON together with ISYteq 4.0. Integrated control system for better optimisation and easier commissioning.

Modular air handling unit with an remarkable energy recovery of up to 86% and available in 21 different sizes – when present requirements demand flexibility and adaptability.

  • Tailor made for customer needs
  • Energy Efficient and optimized with integrated control
  • Large variety of high efficiency components
  • Available in 21 sizes
  • Air flow range: 0.1 – 12 m³/s
  • High degree of flexibility of functionality, configuration and materials
  • Ziehl-Abegg Bluefin wall or floor mounted fans -Market leading high efficiency
  • Wide range of energy efficient energy recovery systems
  • Very high efficiency IE5 EC motors
  • Integrated heat pump – ReCooler HP
  • Integrated controls
  • Hygienic casing

Brug for hjælp?

Få rådgivning og support til projekter

Kontakt os

The eQ Master is our range of flexible modular air handling units. The eQ Master has energy saving components such as FläktGroups Ziehl-Abegg Bluefin fans, PM motors, RegAsorp rotor, Econet intelligent run around coil recovery system, integrated heat pump and integrated controls. It offers a comprehensive range of heat recovery systems, filters, fans and other components packed in a hygienic and ergonomic casing to be able to meet the needs of most applications. eQ Master is available in 21 sizes with an airflow from 0.2 m³/s to 12 m³/s.

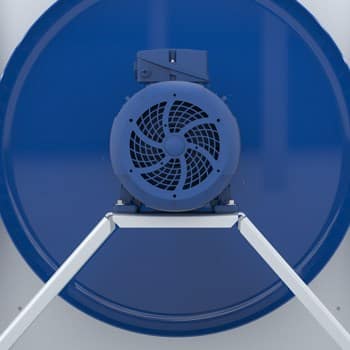

Ziehl-Abegg Bluefin fans

Market leading plug fan either wall or floor mounted with AC (IE3), PM (IE4) or EC (IE5) motors.

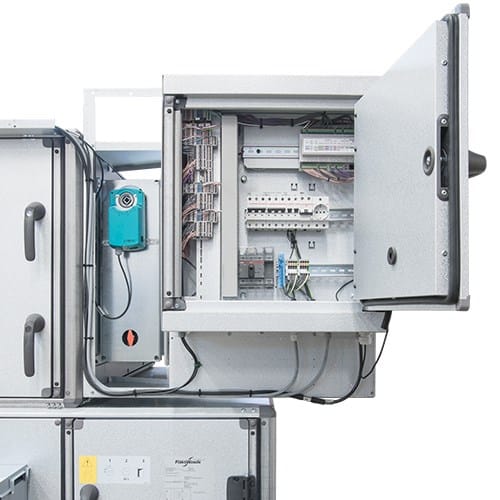

Intergrated Controls

Advanced built-in controls delivers comfortable indoor climate with the highest energy efficiency. Experience-based operating modes designed for optimum performance in a wide range of applications, and including automatic pressure control for units with thermal wheels to ensure that there is no leakage of exhaust air into the supply airstream.

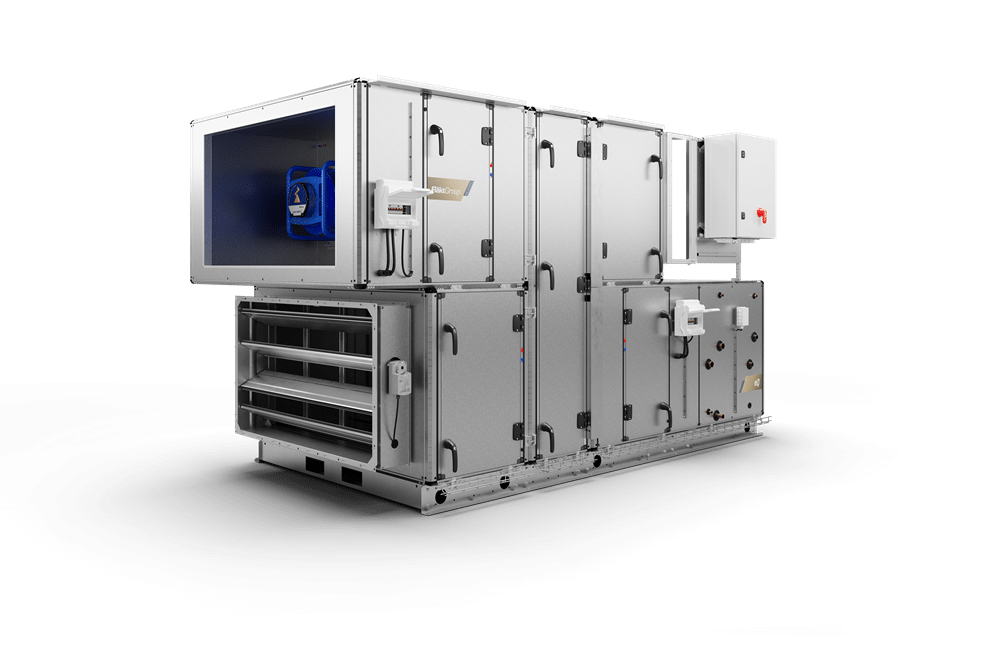

Modular air handling unit

Available in 21 sizes. High degree of flexibility in functionality and configuration.

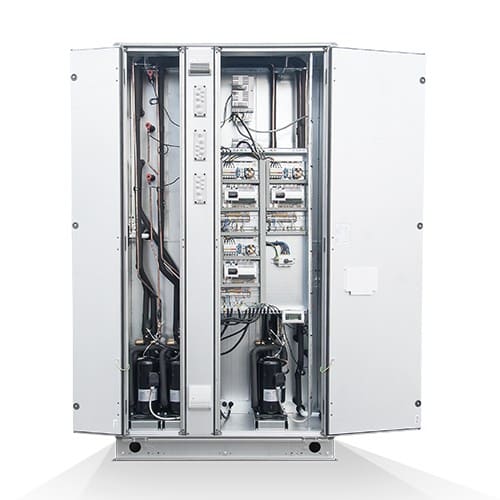

ReCooler HP

A combination of a reversible heat-pump unit and an energy recovery wheel in one unit – bringing true benefits from design to operation. eQ with ReCooler HP is a complete plug & play air handling unit for ventilation, heating and cooling - all in one.

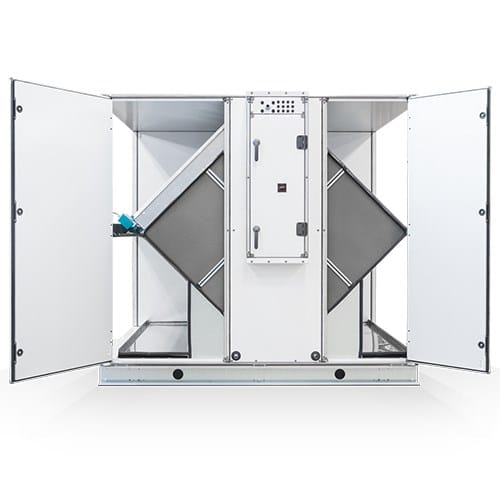

Recuterm Counterflow

Recuterm counterflow plate heat exchanger is ideal for central AHUs in residential buildings where there is a need to consider odour transfer.

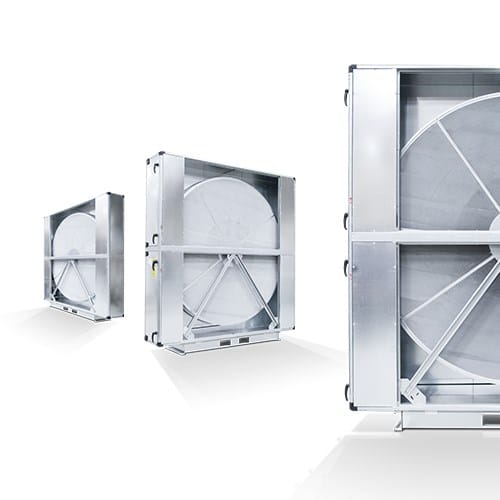

Rotary heat exchangers

Rotary heat exchangers from FläktGroup offer high levels of heating and cooling recovery at low pressure drops. Our rotary heat exchangers comes with different efficiency variants allowing true optimization.

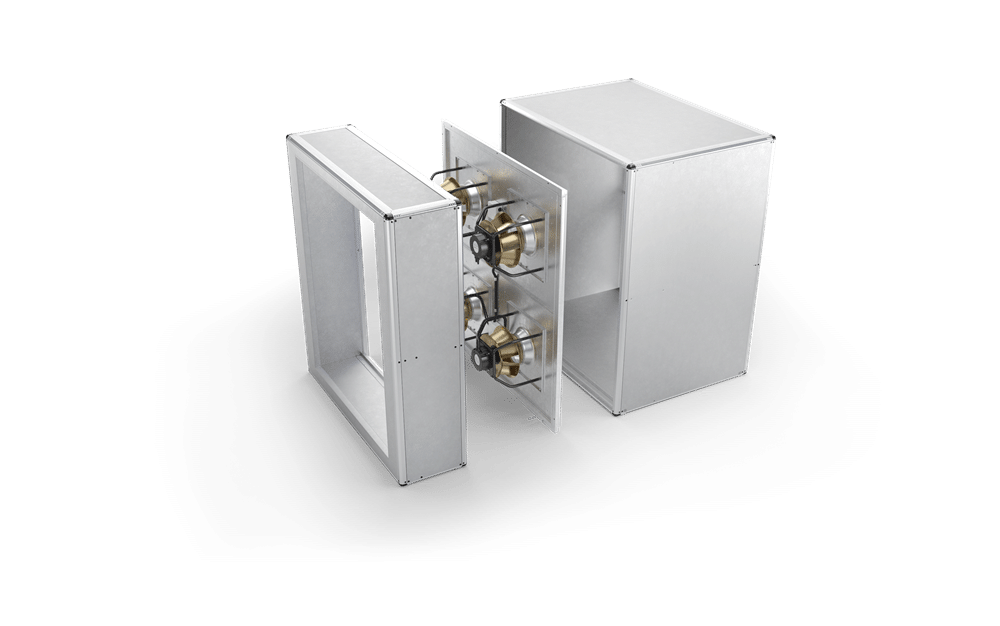

EC fan wall

With an EC fan wall, multiple smaller fans work together to deliver powerful airflow with significantly reduced noise levels compared to a single large fan. The result? Smooth operation, quieter environments, and happier building users.
