DOORS & WINDOWS

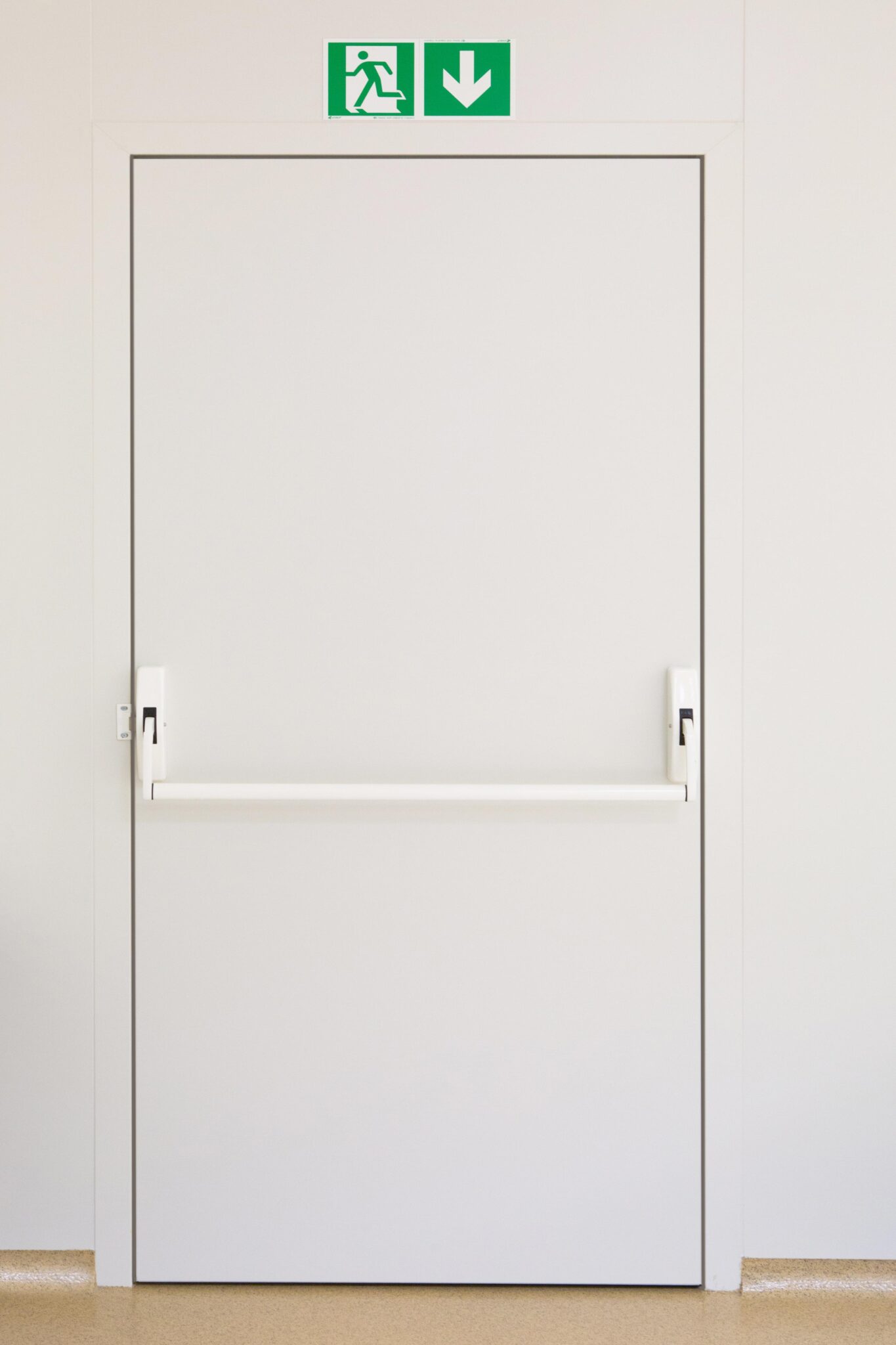

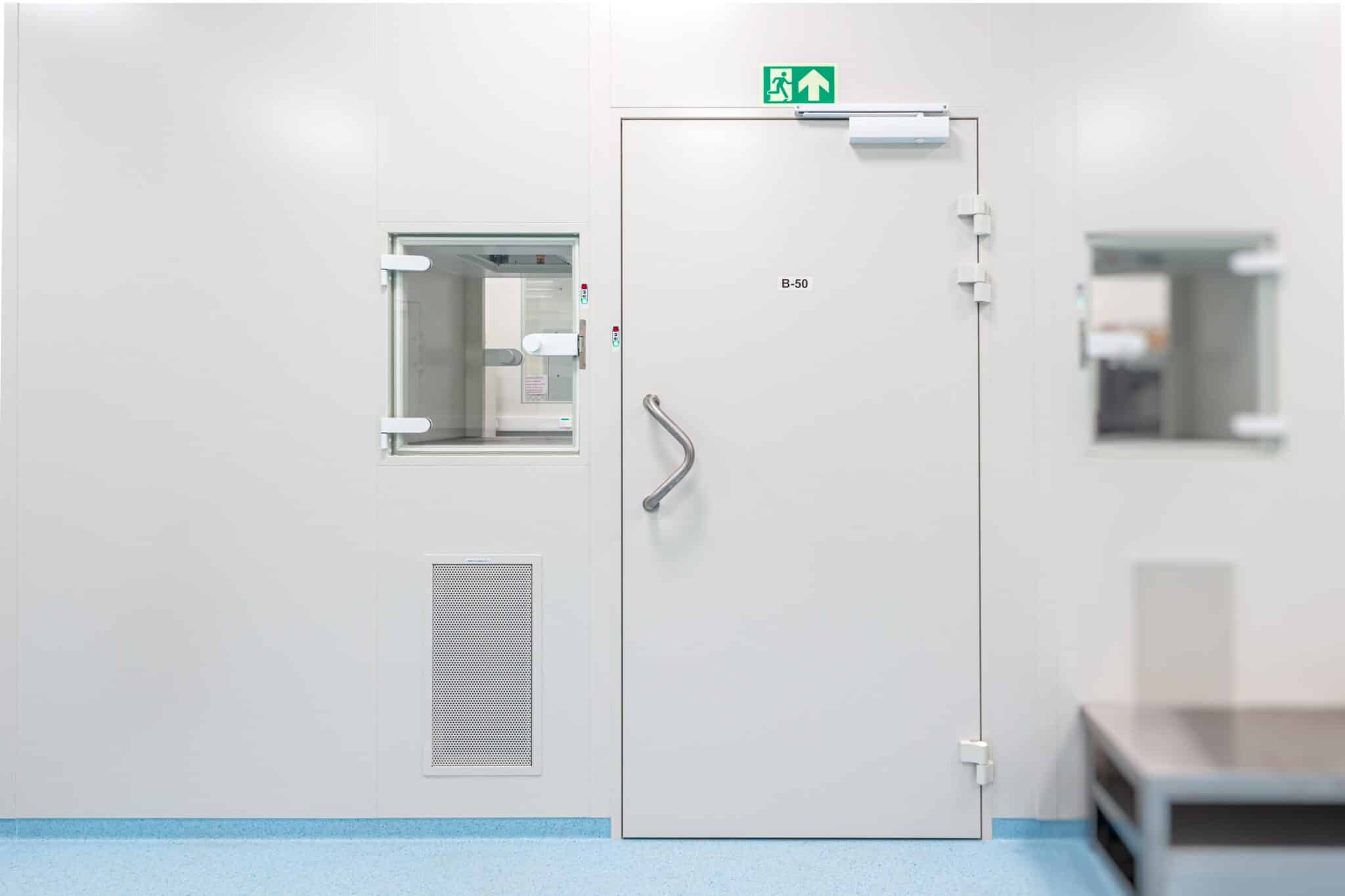

• DH Hinged doors

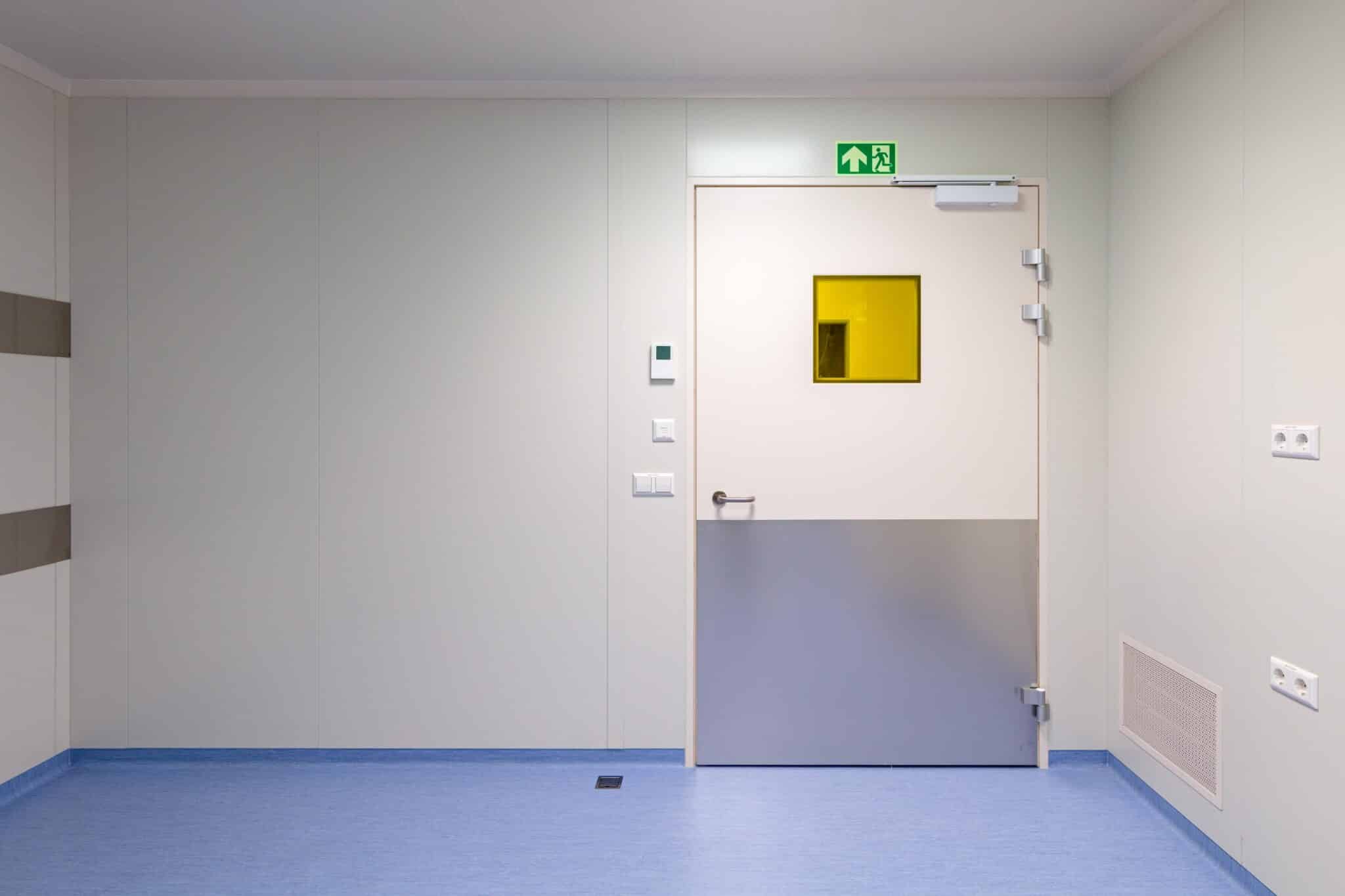

Hinged doors (DH) are the most commonly used door type in clean rooms, thanks to reduction of moving parts and projecting elements. They are part of the whole FläktGroup system ensuring flush installation with wall partitions.

DH features:

• Single or double-leaf doors (one leaf active)
• 60 mm thick leaf sandwich structure (two metal sheets with mineral wool insulation between them)
• Facing material finished with RAL 9002 / RAL 9010 / RAL 6019/ RAL 5024 / custom color on request or stainless-steel
• Standard height of 2100 mm
• Frames made of extruded aluminum profiles
• 3 swivel hinges per door leaf
• Do not include sills
• Window (optionally with sun blinds) or mirror integrated when needed
• Interlock system available (D-MAXX control, electro-lock, signaling panels)
• Fittings in stainless-steel (handles, knobs, pull handles)and white panic fitting
• Automatic drop-down seals and integrated groove profile seals available
• Opened manually or automatically (with automatic drive)
• White door closer optional
• Double-sided cylinder lock
• Stainless-steel kick plates on request

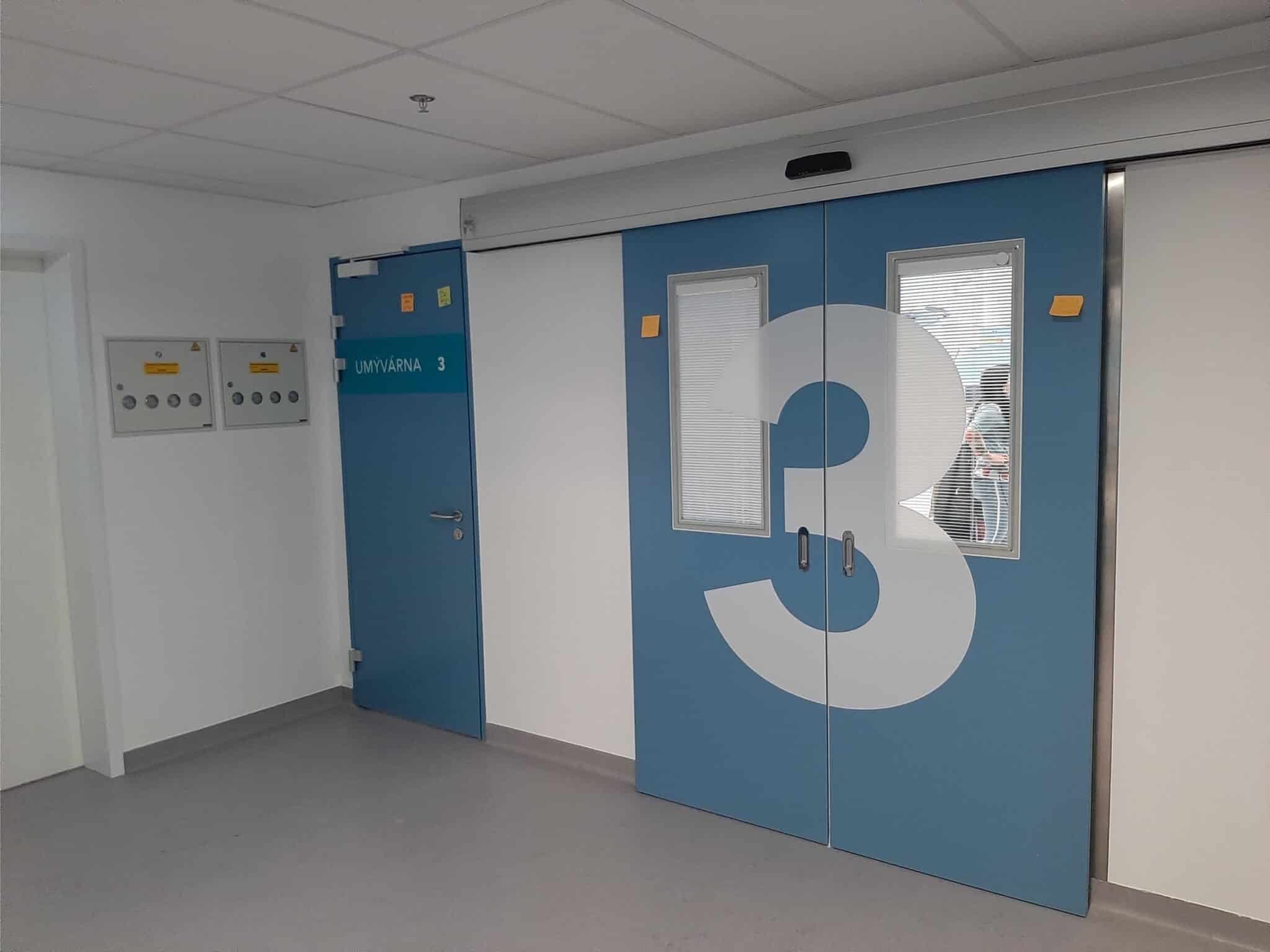

• DS Sliding doors

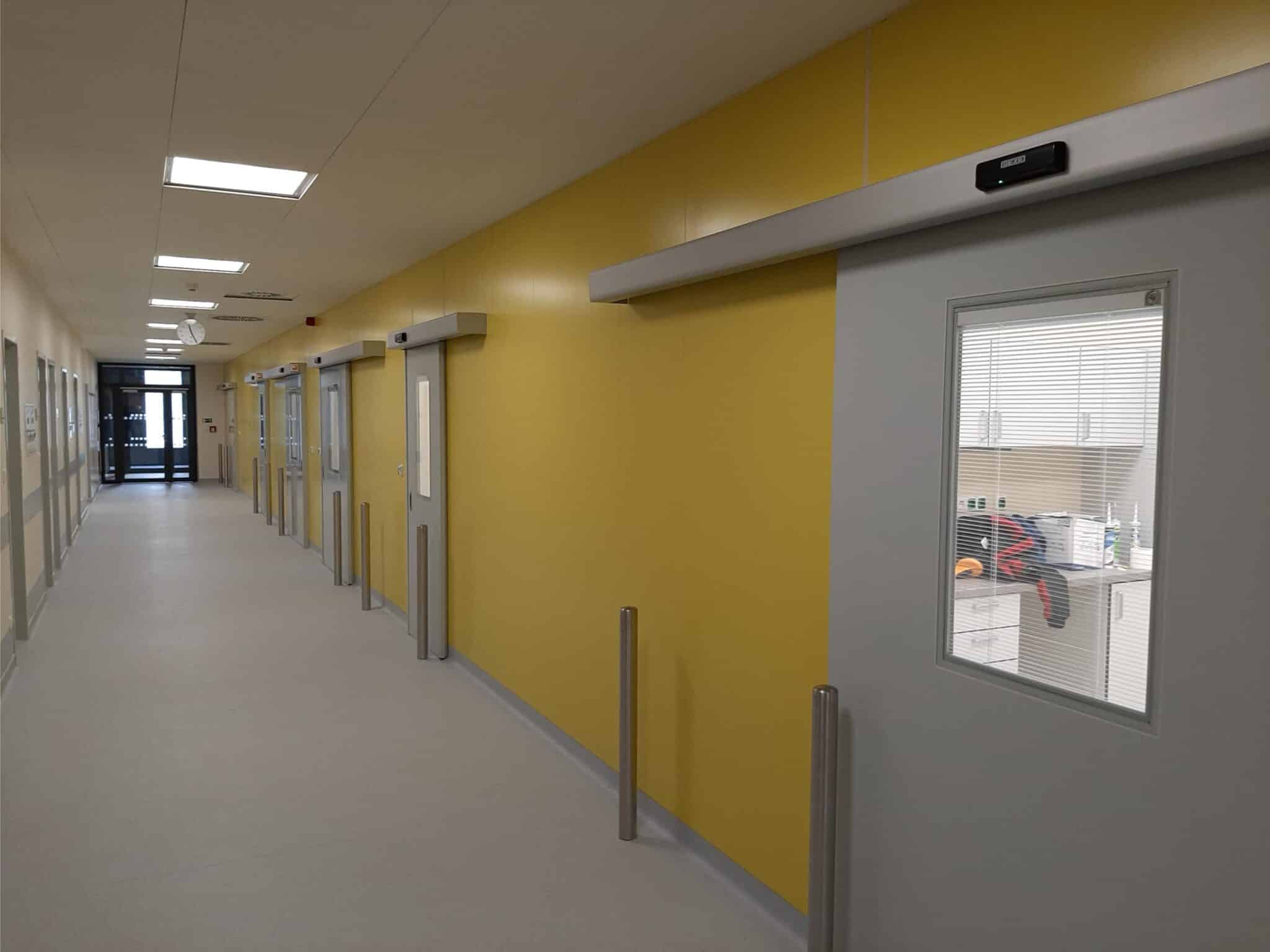

Sliding doors (DS) with an automatic drive eliminates the need for manual opening and closing. The DS door is an ideal choice for narrow passages and corridors, providing an excellent solution when space is limited.

DS features:

• Single or double-leaf symmetric doors
• 32 mm thick leaf sandwich structure (two metal sheets with mineral wool insulation between them)
• Facing material finished with RAL 9002 / RAL 9010 / RAL 6019/ RAL 5024 / custom color on request or stainless-steel
• Standard height of 2100 mm
• Do not include sills
• Frames made of a set of profiles for minimizing the gap between wall and the leaf
• Sliding door rail, optionally with automatic drive
• Window (optionally with sun blinds) or mirror integrated when needed
• Socket handle in silver color
• Automatic drop-down seals available
• Stainless-steel kick plates on request

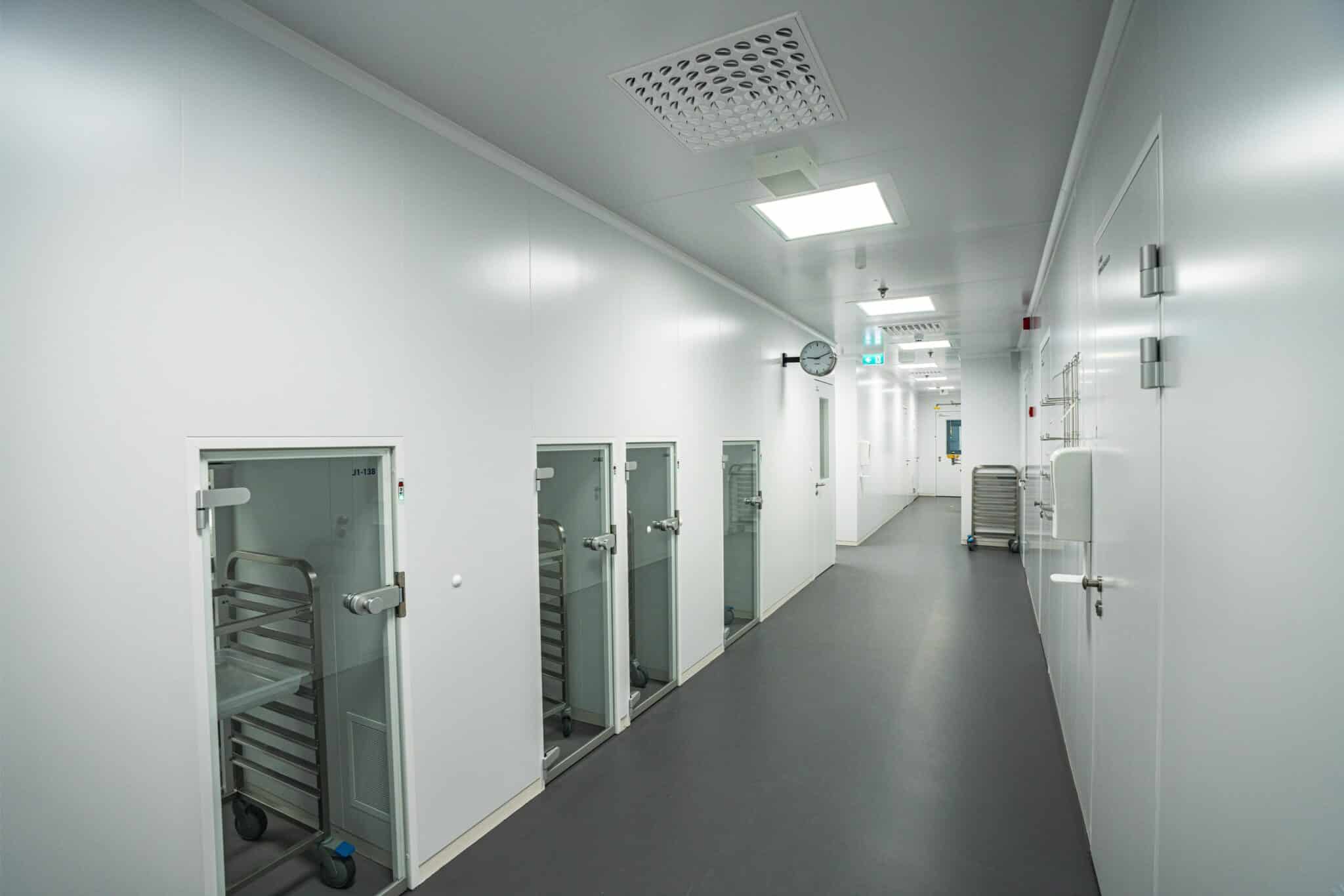

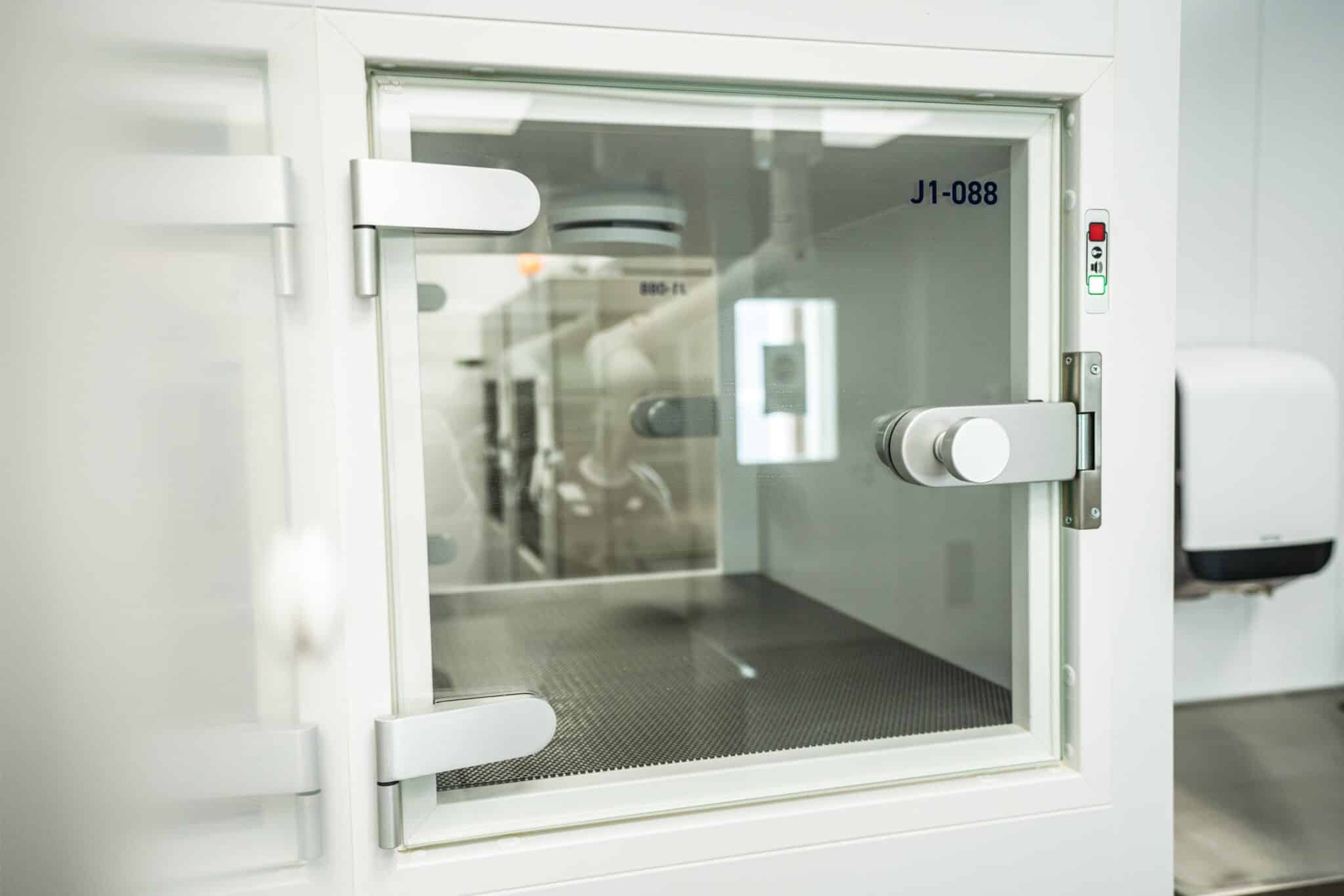

• TH Transfer doors

Transfer doors (TH) are utilized as partitions for transfer boxes, offering a convenient solution for transferring items between areas with different cleanliness classifications. Transfer boxes can be customized in terms of size and material options. They can either be passive or equipped with an air diffuser with HEPA filter, providing filtered airflow.

TH features:

• Single doors
• Clear tempered safety glass (8 mm thick ESG)
• Frames made of extruded aluminum profiles, 60 mm thick,coated with PES in RAL 9002 / RAL 9010 / RAL 6019 / RAL 5024 / custom color on request
• Door frame on all sides or without bottom frame and with an automatic drop-down seal
• Interlock system available (D-MAXX control, electromechanical lock, signaling panels integrated into the frame)
• Standard clear dimensions of 600 x 600, 700 x 700, 900 x 900 mm (atypical dimensions on request)
• 2 hinges per each door leaf
• Fittings (handle or knob) in silver color
• TH doors may be used in multiple configurations as a part of transfer boxes

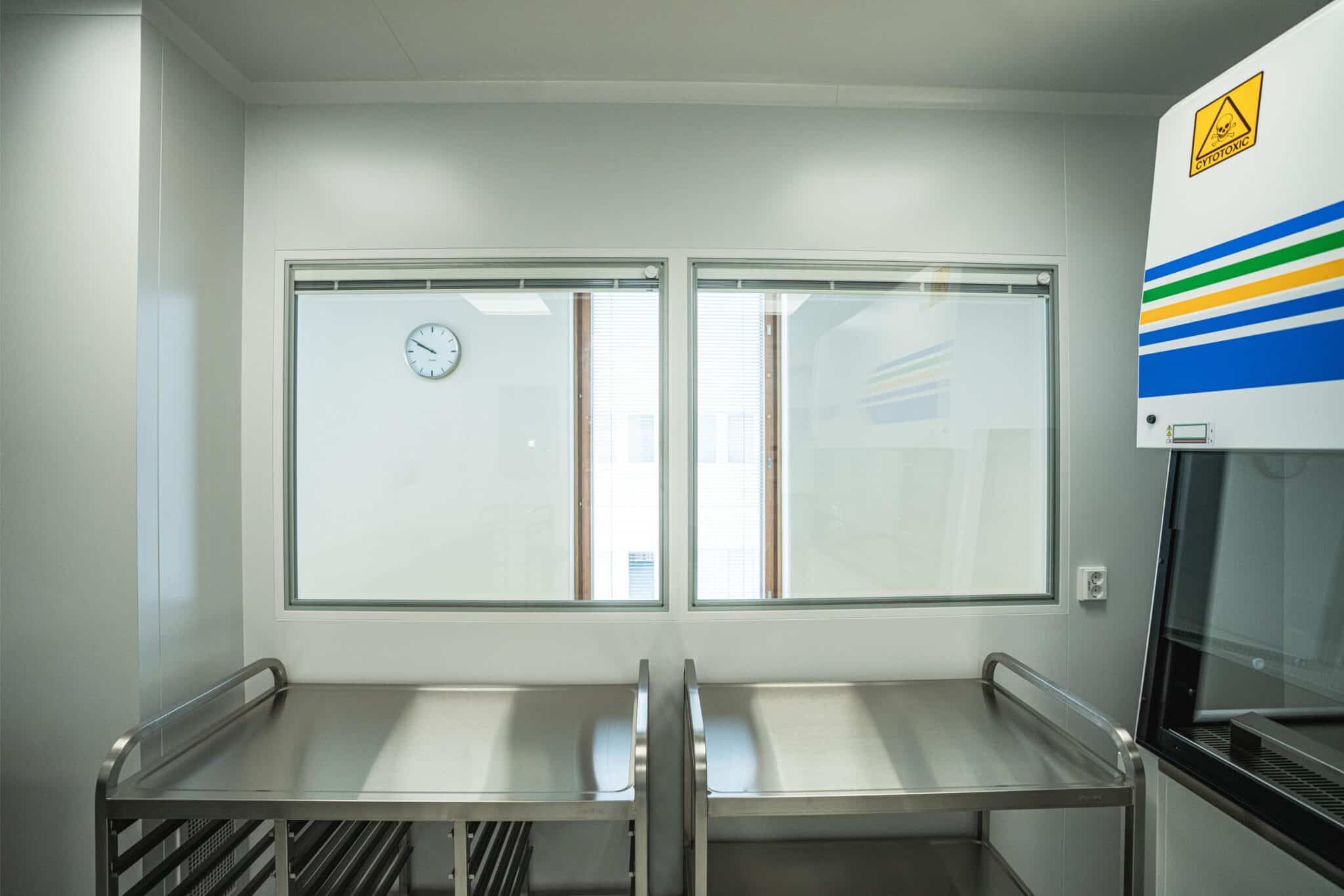

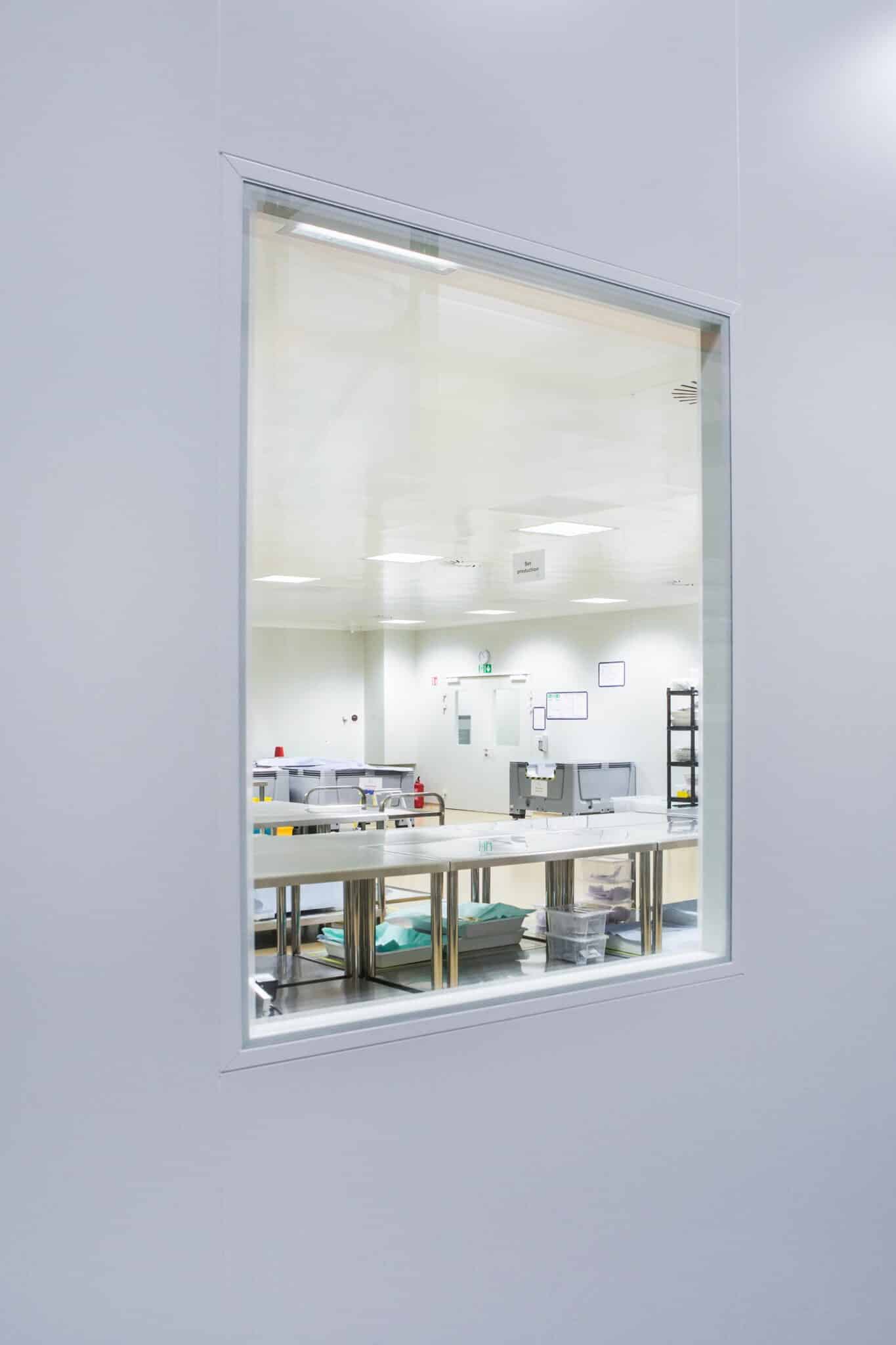

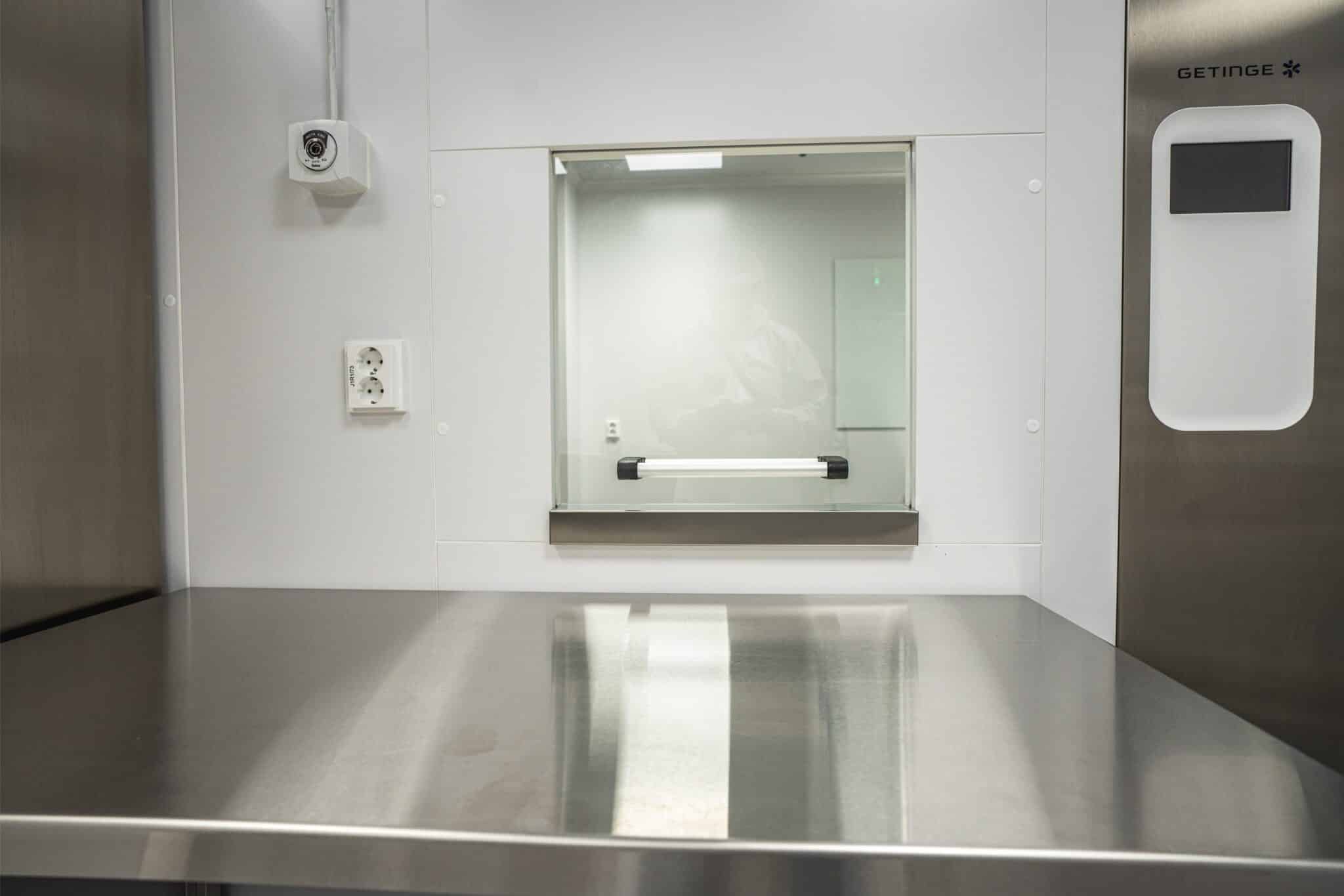

• CRWx non-opening windows

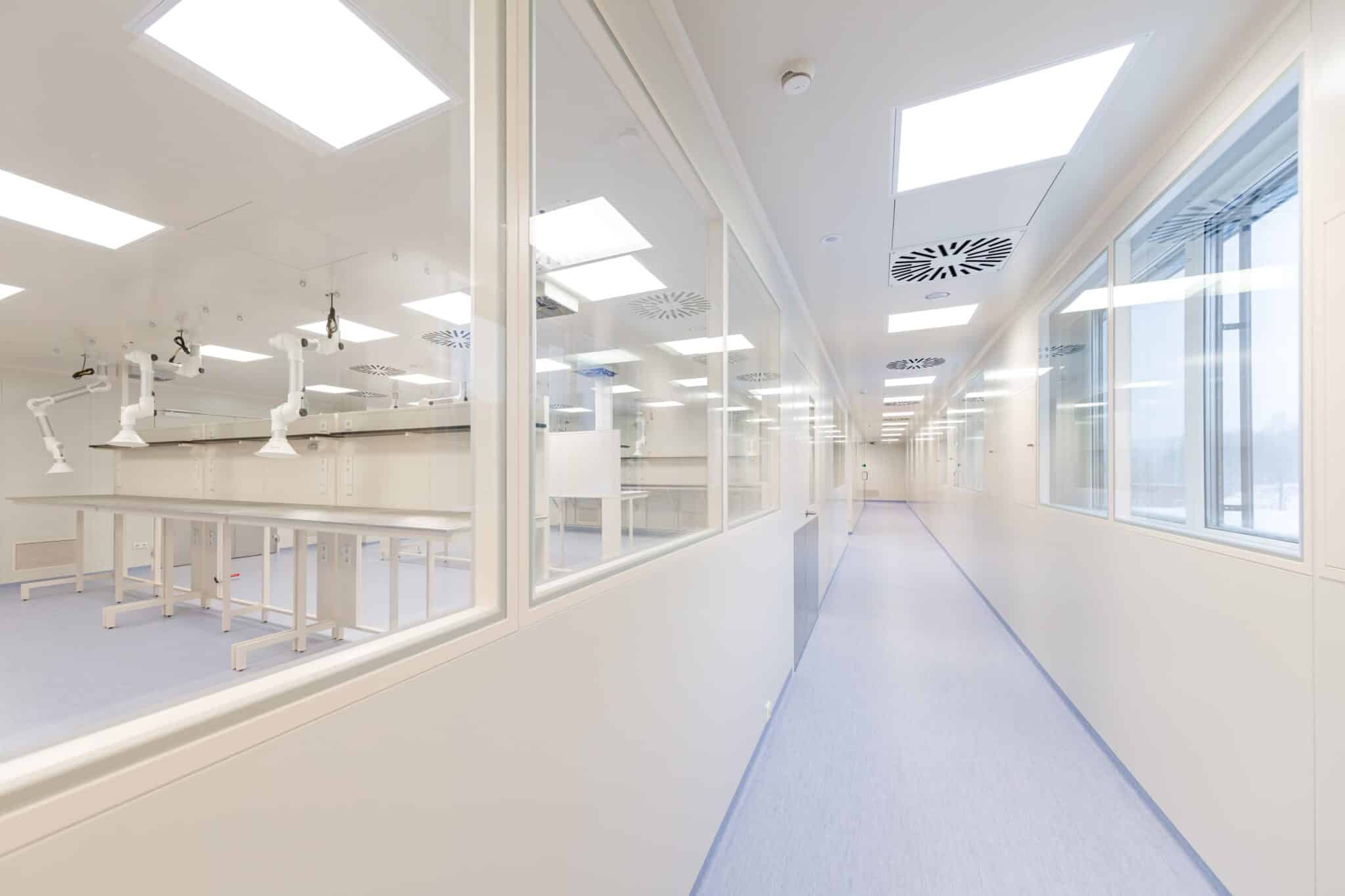

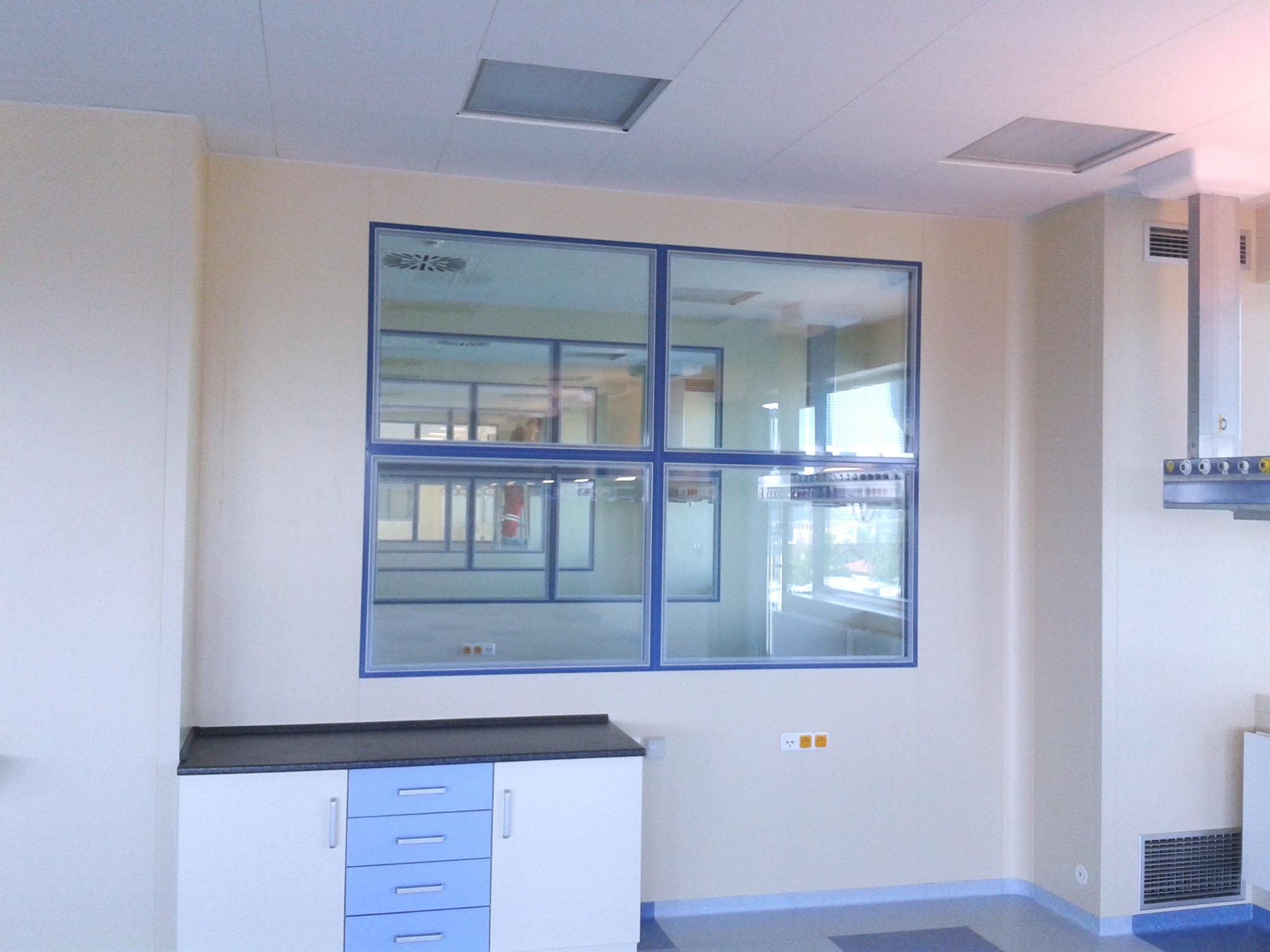

CRWx non-opening windows (glassed-in panels) compatible with FläktGroup clean room wall systems, ensure flush installation in wall partitions.

CRWx features:

• Non-opening windows (glassed-in panels) flush with wall partition
• Compatible with walls system
• Frame made from aluminum, steel or stainless-steel depending on walls system used
• Frame color RAL 9002 / RAL 9010 / RAL 6019 / RAL 5024 / custom color on request
• Glass type: float glass, tempered safety glass (ESG) or laminated safety glass (VSG)
• Single-, double- or triple glazing and glass thickness (4 or 6 mm) depending on used wall system

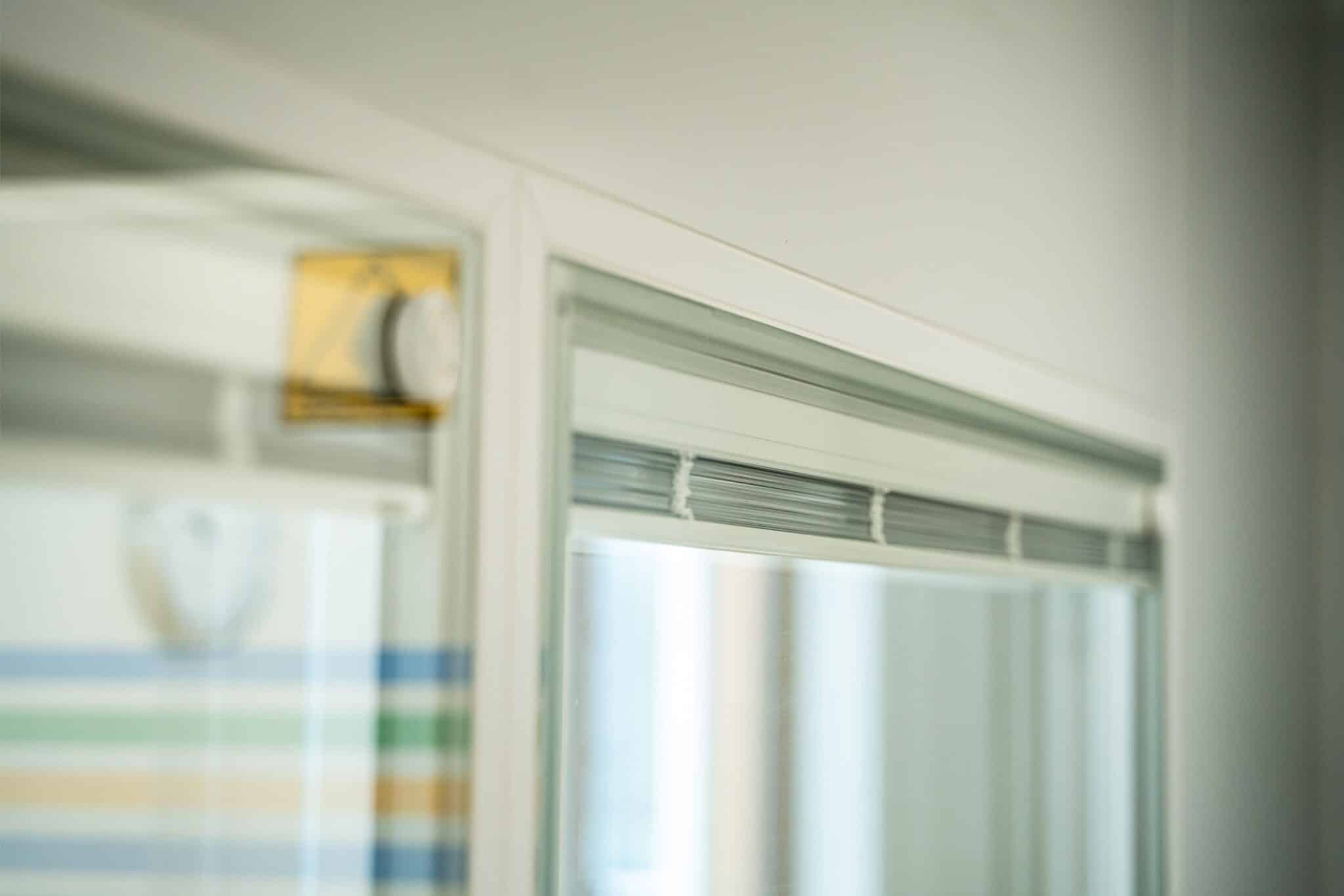

• Integrated sunblind (white jalousie) controlled electrically or manually with magnetic detachable knob
