CEILINGS

• LS Light ceiling (clip-in)

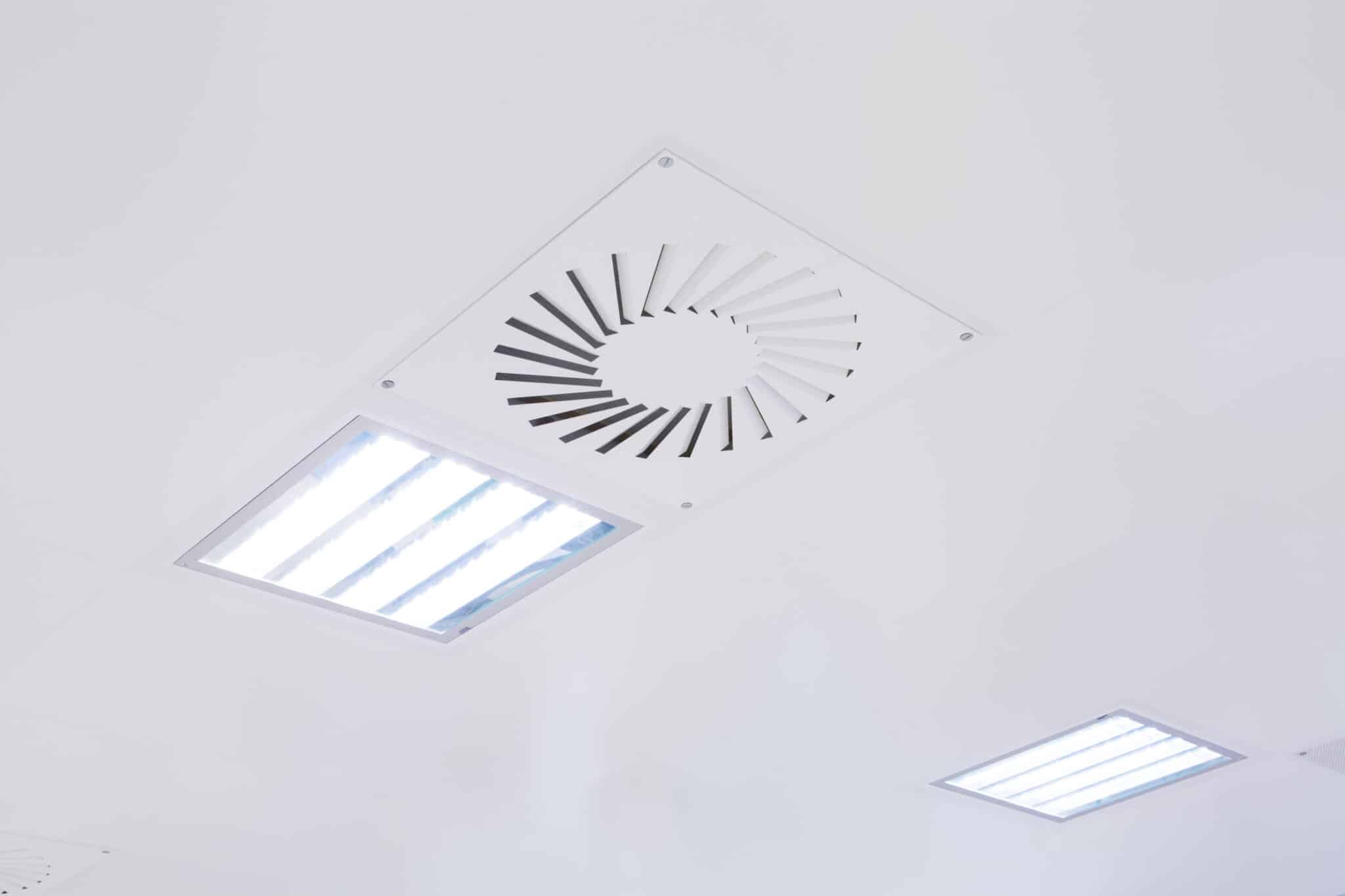

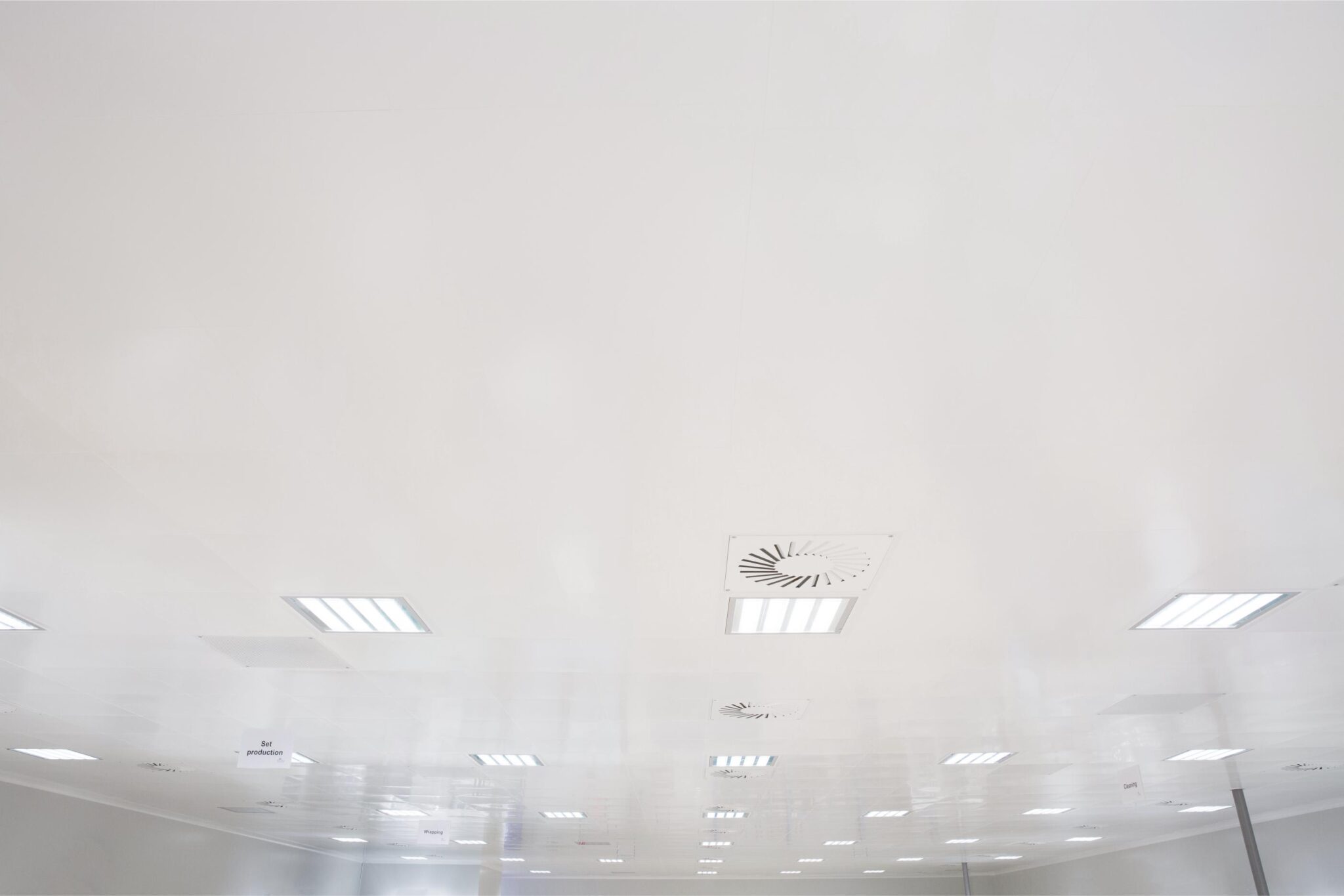

LS Light ceiling (clip-in) features a lightweight construction, although over pressure in a clean room up to 50 Pa is possible. This ceiling has an absolutely flat surface, as the suspending elements are hidden above the modules and enables easy cleaning. LS Light Ceiling consists of a double-layer load-bearing grid with an axial span of 600 x 600, 625 x 625 or 675 x 675 mm. The top and bottom layers of the grid are made up of locking profiles (clip-in solution) and are connected to each other using fixing lugs. LS cassettes made from 0.5 mm thick galvanized steel sheet,finished on the visible side with a 25 μm thick polyester semi-matte paint RAL 9010, are inserted into the bottom locking profiles and, along the perimeter of the room, into aluminum end profiles (profile F, radius profile RF). Joints are sealed with silicone.

• KS Cassette ceiling (grid)

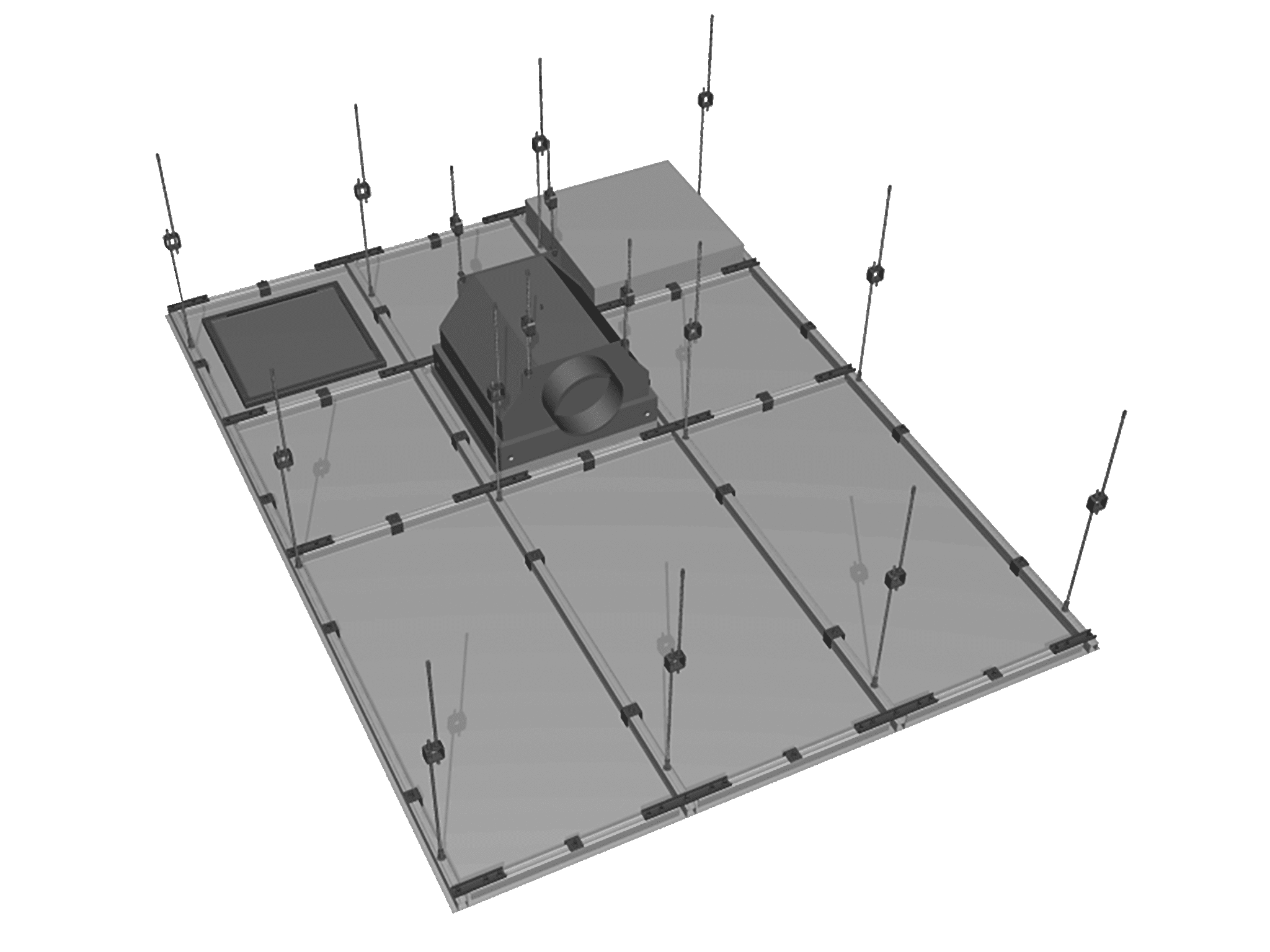

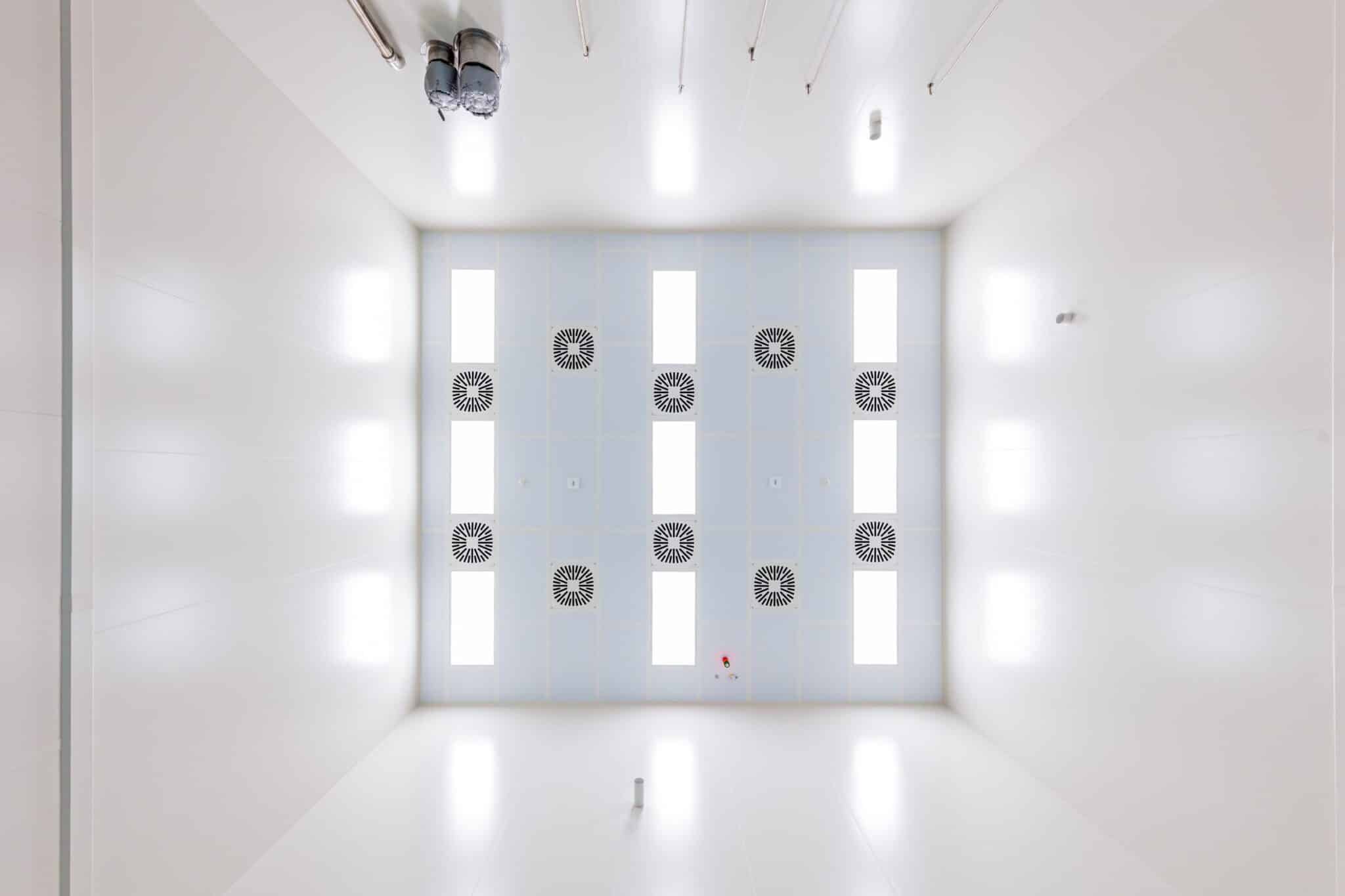

KS Cassette ceiling (grid) is designed for higher classes of clean rooms and feature a rigid construction. This allows high over and under pressure in a clean room. A characteristic feature of the KS ceiling is the grid made of KSL profiles,visible from the room level. The cassette ceiling (KS) consists of a load-bearing grid made from aluminum KSL profiles, with an axial span of either 1380 x 690 mm or 690 x 690 mm. The KSL profiles, coated in RAL 9010 varnish, are connected to each other using KSL couplers. KS cassettes are made from 1.0 mm thick galvanized steel sheet, finished on the visible side with a 25 μm thick polyester semi-matte paint (RAL 9010). KS Cassettes are integrated with the grid structure from the top (secured by KSL clamps), and along the perimeter of the room, Finish-cut Cassettes are inserted into aluminum end profiles (profile F/radius RF/radius R30+L30x20). Joints are sealed with silicone.

• KSH Alucore ceiling (grid)

With honeycomb aluminum cassettes (Alucore) and a robust design, the KSH ceiling can bear a load of 150 kg/m², allowing for walkable access from above. KSH ceiling consists of a load-bearing grid made from aluminum KSL profiles, with an axial span of either 1280 x 690 mm or 655 x 690 mm. The KSL profiles, coated in RAL 9010 varnish (RAL 9003 on request), are connected to each other using KSH couplers. KSH cassettes are made of sandwich panels performed in Alucore material (honeycomb aluminum structure) with a thickness of 10 mm. Cover sheets are made of aluminum alloy and the sheet core is performed as aluminum honeycomb. Both sides are platinum white with a polyester paint (approx. RAL 9003). Cassettes are integrated with the grid structure from the top (secured by KSH clamps) and, along the perimeter of the room, are cut to fit into KSLprofile, which is fastened to strip L30x20 and covered by aluminum radius profile R30. Joints are sealed with silicone.

• RS Panel ceiling (sandwich panels)

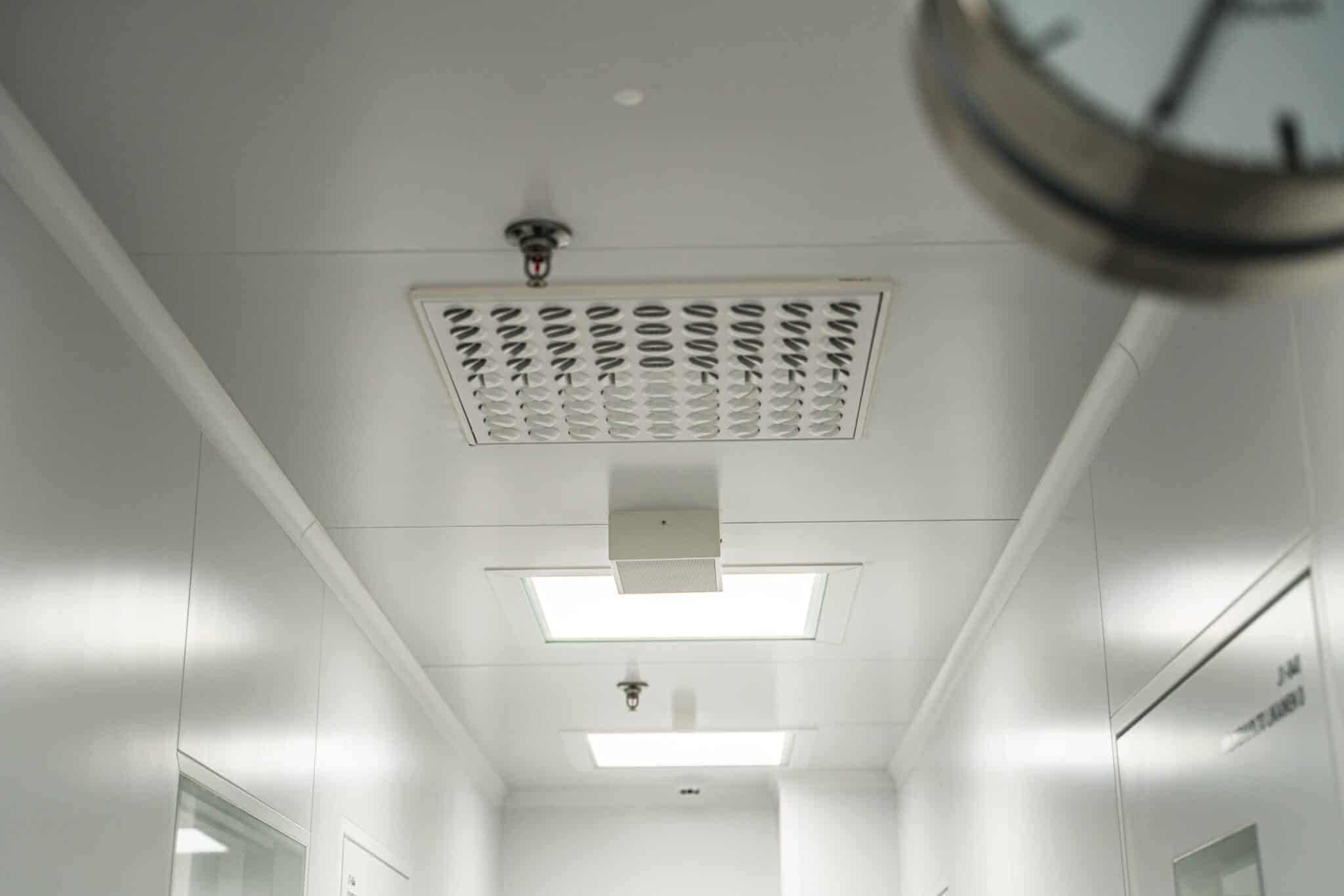

RS Panel ceiling (sandwich panels) is a part of a complex industrially made modular system designed as a building-in for clean rooms. RS Panel Ceiling is a walkable ceiling with a payload of 150 kg/m². It is suitable for assembly and service / inspections, but not intended for carrying the weight of HVAC units etc. Attention must be given nearby openings (cut-outs). RS ceiling is made of sandwich-type (glued) panels with analuminum border section frame, measuring 62 mm in thickness. The face material consists of a 0.75 mm thick steel zinc-plated sheet, painted with PES varnish in shade RAL 9010 semi-matte finish and protected by a cover foil. Optionally the face material consists of a 0.80 mm thick stainless-steel sheet V2A with surface treatment SB (brushed). The core filling is composed of mineral wool with perpendicular fibers, with a thickness of 60 mm and a specific weight of 100 kg/m³, glued with an expansive single-component polyurethane adhesive. Wall/ceiling connection is covered with R30 aluminum radius profile R30, fastened in combination with profile L-20×30-2500. Joints between panels are sealed with silicone.
